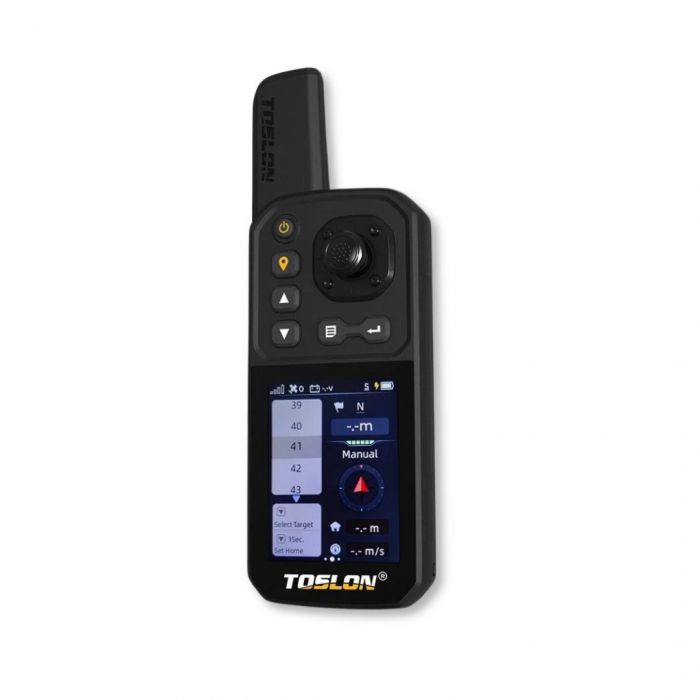

Toslon - XR310 Autopilot

The Toslon XR310 is a compact, one-handed GPS autopilot and control handset built for use with the Toslon X-Boat and a wide range of compatible bait boats. Designed with convenience and precision in mind, this all-in-one touchscreen unit puts every essential control right at your fingertips — including manual steering, GPS navigation, waypoint memory, autopilot, and channel mapping.

With a clear, responsive screen and an ergonomic layout, the XR310 makes it easy to steer your boat, mark and recall spots, and program autopilot missions—all while holding your rod in the other hand. It replaces the need for multiple bulky remotes and simplifies your setup, whether you’re fishing at range or dropping bait right under a snag.

Powered by two rechargeable Li-ion batteries (sold separately), the XR310 offers up to 8 hours of use and features USB-C charging for convenient power top-ups at home or on the bank. A supplied EVA hard case keeps the unit protected during transport.

KEY FEATURES

• All-in-One Controller: Combines GPS autopilot, steering, and function controls in one compact handset.
• 8-Channel Control: Fully compatible with MIXER setups and a wide range of bait boats.
• Touchscreen Display: 2.8" color display for easy map viewing and control switching.
• Autopilot with Arrival Actions: Program precise routes with automatic bait release, light control, and return-to-home.
• Quiet-Reach Mode: Reduces speed automatically as the boat nears your waypoint for a stealthy approach.
• One-Click Cruise Control: Activate cruise with a simple joystick press.
• Customizable Buttons: Map up to 6 buttons to different boat functions for fast access.
• Waypoint Storage: Save up to 100 GPS locations using a microSD card (8–32 GB).
• Fail-Safe Auto Return: Boat returns to home if signal is lost for more than 20 seconds.
• USB-C Charging: Easy charging at the bank or at home with standard USB-C port.
• Durable & Portable: Splash-resistant (IP3 rated) and supplied with EVA hard case.

SPECIFICATIONS

• Display: 2.8" TFT capacitive touchscreen (320 × 240 resolution).
• GPS System: Multi-GNSS (GPS, BeiDou, Galileo, GLONASS) with onboard compass (in boat).
• Memory: Supports 8–32 GB microSD card for waypoint storage (up to 100 points).
• Battery: Two 14650 Li-ion batteries (not included); approx. 8 hours runtime.
• Charging: USB-C (DC 5V / 1A).
• Radio System: 2.4 GHz FHSS, 20 dBm output (tested at 500m+ range).
• Receiver Output: PWM, PPM, and UART interfaces.
• Size: 179mm x 62mm x 27mm.
• Water Resistance: Rated to IP3 standard.
• Case: EVA protective carry case included.
