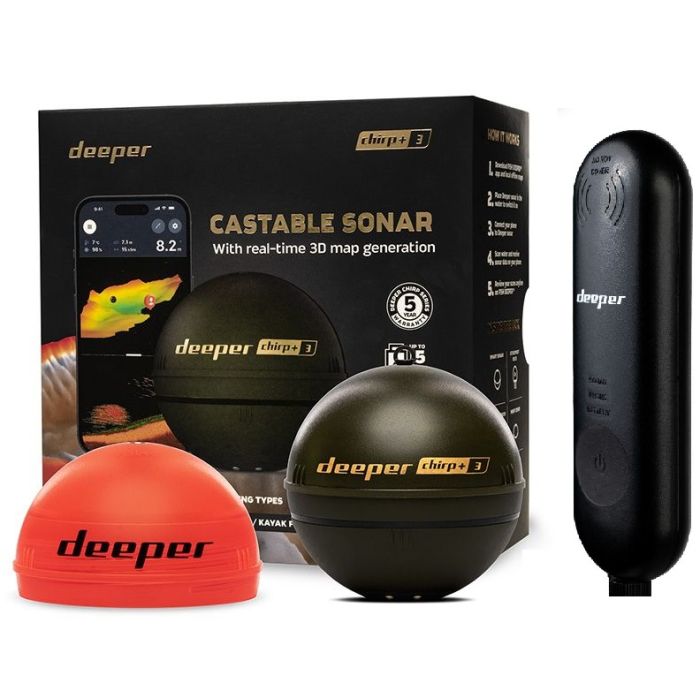

Deeper - Chirp + 3 Sonar With Range Extender Shore Kit

The Deeper Chirp+ 3 Sonar brings incredible detail of your venue with bathymetry mapping generating live 3D maps and giving an accurate picture of bottom structure, depth, and hill slopes. An ultra-precise 1cm target separation that allows you to distinguish even the smallest fish, pinpointing targets to maximise your catch efficiency. Featuring three beam frequencies, a wide beam for quick area scanning. A mid-point beam for balanced detail and a narrow beam for pinpoint accuracy. Simply pair with the Fish Deeper app on your smartphone, and you're ready to go.

Features

    3D personal bathymetry
    Higher detail sonar readings
    High accuracy GPS
    5-year warranty

Specifications

    Material - ABS enclosure
    Sonar Type - 3 Frequency
    Frequency (Beam cone) Narrow 675 kHz (cone angle 7°) - Medium 240 kHz (cone angle 20°) - Wide 100 kHz (cone angle 47°)
    Target separation - 1 cm / 0.4 in Narrow beam - 2.4 cm / 1 in Medium beam - 2.4 cm / 1 in Wide beam
    Min - Max depth - 15 cm - 100 m / 6 in - 330 ft
    Scanning rate - Up to 15 / second
    Temperature sensor - Water surface temperature sensor in Celsius / Fahrenheit
    Operating temperature - 20°c to 40°c
    GNSS (Global positioning systems supported) - GPS, GLONASS, Galileo, BeiDou, QZSS
    Operating time - Up to 9 hours
    Charging technology - Fast charge - 80% in 45 min - 100% in 75 min.
    Internal battery - Li-Ion, 3.8V Rechargeable, 1300 mAh
    Outlet adapter (not included) - Input 110V/220V. Output Micro USB, 5V 2A
    Connectivity - Wi-Fi
    Connectivity range - Stable connection up to 100 m / 330 ft
    Colour - Black

Experience enhanced connectivity with the innovative Deeper Sonar Range Extender. Engineered to double the range of your standard Deeper sonar units, this device expands your reach up to 200m, providing a stable connection for seamless operation.

Easy to pair and connect to your smartphone, it features a standard thread gooseneck arm for effortless mounting of both the range extender and your phone. Perfect for anglers seeking to capture detailed maps of expansive waters from the shore, these extenders elevate your fishing experience to new heights.
KEY FEATURES

    Fits most phone sizes
    Flexible gooseneck
    Operates in temperatures of 0°C - 40°C
    ABS enclosure and metal insert material
    Compatible with all Deeper Sonars
    Easily links to phone and sonar
    Ideal for bait boat anglers
    Wi-Fi connection up to 200m
    Battery life is up to 14 hours (charges to 100% in 3 hours)

SPECIFICATIONS

    Colour: Black
    Aluminium alloy, ABS, stainless steel, silicone materials
    Holder Size: 13.6cm × 4.1cm x 3.2cm
    Holder Clip Width: 5cm - 8.5cm
    Holder Weight: 73g
    Extender Size: 15.1cm × 4.6cm x 2.25cm
    Extender Weight: 91g

 The USB charging cable that comes with your device is compatible with any standard USB port. This includes standard smartphone and tablet chargers, and the USB outlets of your computer and car. Outlets must meet USB standards and have a voltage level of 5V
