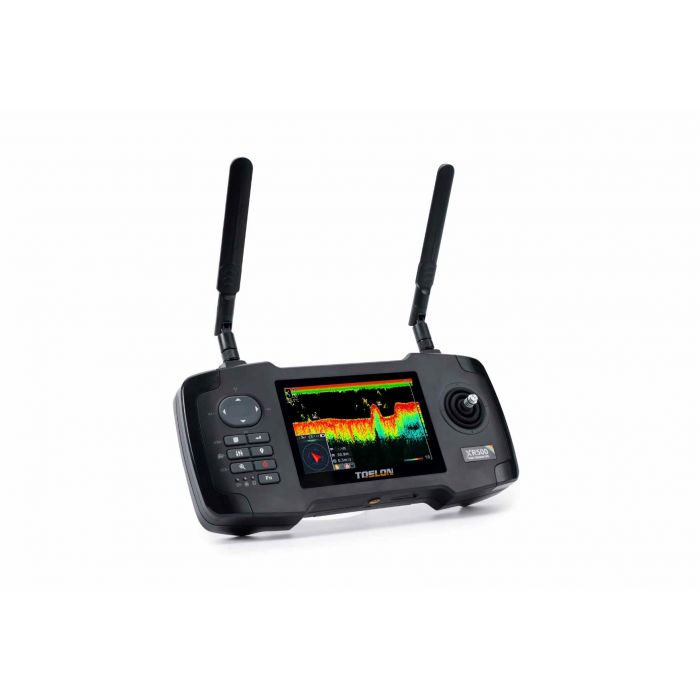

Toslon - XR500 Smart Remote

The Toslon XR500 is an all-in-one autopilot, sonar, and remote control system designed to transform your bait boat into a fully integrated smart fishing tool. Featuring a 10th generation high-accuracy GNSS receiver, advanced HD echo sounder, and autopilot functionality, the XR500 delivers unmatched precision and ease of use. With support for up to 500 waypoints and seamless route plotting, anglers can fish with confidence, efficiency, and reliability in any conditions. The upgraded electronics, speed controllers, new batteries, and included charger ensure dependable performance straight out of the box.

KEY FEATURES

• All-in-one system combining autopilot, sonar, and remote control
• Support for up to 8 control channels with MIXER functionality
• 10th generation GNSS receiver for highly accurate navigation
• Advanced HD echo sounder with 8 colour palettes for day or night use
• Route plotter with 2D map depth information
• Dual compasses (boat & handheld) provide heading even when stationary
• Stores up to 500 waypoints, with 5 quick-access favourites
• Quiet-reach mode slows the boat for stealthy approaches
• Cruise Control System (CCS): one-click joystick for straight-line travel
• Autopilot mode: automatic hopper release and return-to-home function
• Pick a point on the map and start autopilot anytime
• SD card support for import/export of waypoints, settings, software upgrades, and sonar/GPS log recording
• Google KML file support for mapping
• 6 programmable buttons for custom controls
• Handset with integrated 5" HD touchscreen (800x480 pixels)
• Rechargeable via USB-C, with 8-hour battery life
• Supplied with EVA hardcase for protection
• Boat comes with upgraded electronics, speed controllers, batteries, and charger

SPECIFICATIONS

Handheld

• Display: 5" HD TFT colour screen (800×480 pixels)
• Interfaces: 3 different user styles
• Programmable Buttons: 6 linked to receiver
• Power: USB-C input, DC5V 3A
• Battery: 3 × 18650 cells (optional)
• Built-in Li-ion Charger: Yes
• Battery Life: 8 hours
• Water Resistance: Splashproof
• Radio: 2.4GHz FHSS, 8 channels, 300–500m range (environment dependent)
• Case Size: 268 × 120 × 42mm

Boat Control System

• Signal Interface: PWM, PPM, UART (optional)
• Receiver Channels: 8
• GNSS/Compass Port: RS232, 19200bps
• Fail-Safe: Yes (auto-return to home after 20s signal loss)
• Power Input: DC 6–16V / 200mA

Echo Sounder

• Max Depth: 40m
• Coverage: 60°
• Ping Rate: 6Hz
• Software Engine: Gen3
• Hardware Gain: Adjustable
• Custom Colour Schemes: Supported
• 2D Map Route Depth Indication: Yes
• Power Input: DC 9–16V / 200mA

Navigation / Autopilot

• Waypoints: 500 (with depth & time info)
• Favourite Shortcuts: 5
• Prop Support: Dual-prop and rudder boats
• Steering Sensitivity: Adjustable
• Push-Go Shortcut: Yes
• Pick Waypoint from Map: Yes
• Boat Speed Support: 1–5m/s
• Cruise Control: Yes
• Quiet Reach Mode: Yes (slows on approach)
• Arrive Actions: Configurable (hopper release, hook release, auto-return)
