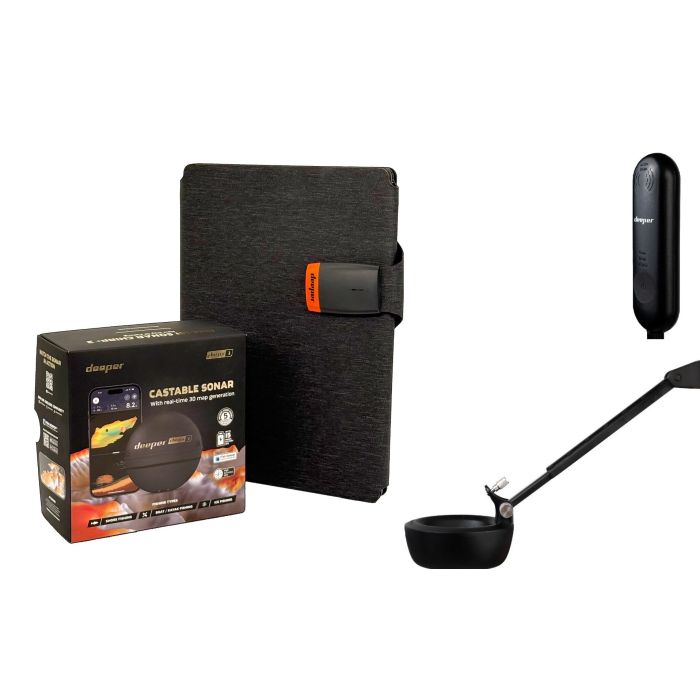

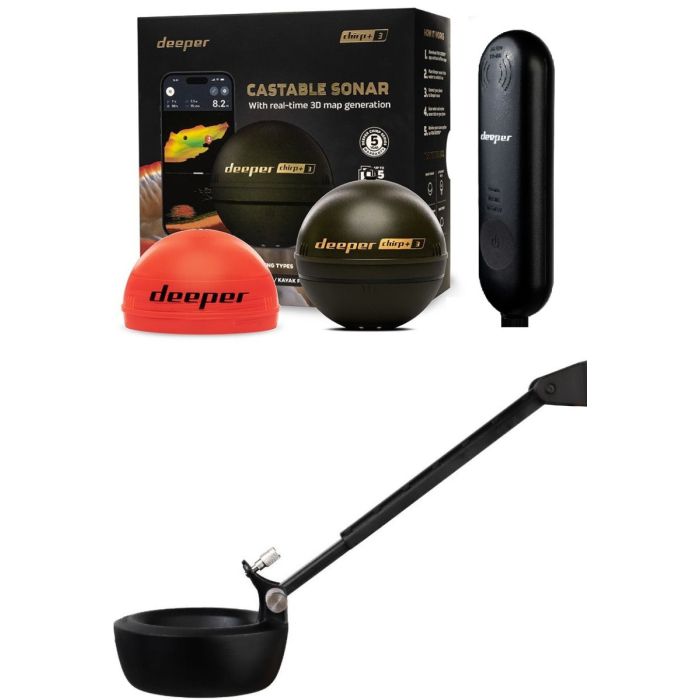

Deeper - Chirp + 3 Sonar With Range Extender Full Kit

The Deeper Chirp+ 3 Sonar brings incredible detail of your venue with bathymetry mapping generating live 3D maps and giving an accurate picture of bottom structure, depth, and hill slopes. An ultra-precise 1cm target separation that allows you to distinguish even the smallest fish, pinpointing targets to maximise your catch efficiency. Featuring three beam frequencies, a wide beam for quick area scanning. A mid-point beam for balanced detail and a narrow beam for pinpoint accuracy. Simply pair with the Fish Deeper app on your smartphone, and you're ready to go.

Features

    3D personal bathymetry
    Higher detail sonar readings
    High accuracy GPS
    5-year warranty

Specifications

    Material - ABS enclosure
    Sonar Type - 3 Frequency
    Frequency (Beam cone) Narrow 675 kHz (cone angle 7°) - Medium 240 kHz (cone angle 20°) - Wide 100 kHz (cone angle 47°)
    Target separation - 1 cm / 0.4 in Narrow beam - 2.4 cm / 1 in Medium beam - 2.4 cm / 1 in Wide beam
    Min - Max depth - 15 cm - 100 m / 6 in - 330 ft
    Scanning rate - Up to 15 / second
    Temperature sensor - Water surface temperature sensor in Celsius / Fahrenheit
    Operating temperature - 20°c to 40°c
    GNSS (Global positioning systems supported) - GPS, GLONASS, Galileo, BeiDou, QZSS
    Operating time - Up to 9 hours
    Charging technology - Fast charge - 80% in 45 min - 100% in 75 min.
    Internal battery - Li-Ion, 3.8V Rechargeable, 1300 mAh
    Outlet adapter (not included) - Input 110V/220V. Output Micro USB, 5V 2A
    Connectivity - Wi-Fi
    Connectivity range - Stable connection up to 100 m / 330 ft
    Colour - Black

PHONE & DEEPER RANGE EXTENDER HOLDER
Fits most phone sizes.
Flexible gooseneck.
Sized at 13.6 × 4.1 × 3.2 cm / 5.4 × 1.6 × 1.3 in.
Phone clip width 5 to 8.5 cm / 2 to 3.3 in.
Weighs only 73 g / 2.6 oz.
Black colour.
Made of aluminium alloy, ABS, stainless steel, silicone materials.

DEEPER RANGE EXTENDER
Easily links to phone and sonar.
Ideal for bait boat anglers.
Wi-Fi connection up to 200 m / 656 ft*.
Battery life up to 14 hours.
Charges to 100% in 3 hours.
Sized at 15.1 × 4.6 × 2.25 cm /5.94 × 1.81 × 0.88 in.
Weighs only 91 g / 3.24 oz.
Operates in temperatures of 0°C to40°C / 32°F to 104°F.nBlack and translucent black colour.
ABS enclosure and metal insert material.
Compatible with all Deeper Sonars.

DEEPER BAIT BOAT SONAR HOLDER
Fits most bait boats.
Requires no drilling.
Unique designed compatible with PRO / CHIRP series sonars.
Extended length 18 to 28 cm / 7 to 11 in.
Sized at 26 cm × 10 cm / 10.2 in × 3.9 in.
Weighs only 100 g / 3.52 oz.
Black colour.
Made of plastic and stainless steel.

The USB charging cable that comes with your device is compatible with any standard USB port. This includes standard smartphone and tablet chargers, and the USB outlets of your computer and car. Outlets must meet USB standards and have a voltage level of 5V
